Technical Data

Full Specifications

Architecture Blueprint

Variant PRO / MAX

EX5 Blueprint

Driving Range (WLTP)

430km*

8 Years Warranty

Battery & Drive Motor

Dimensions

Overall Length 4615 mm
Overall Width 1901 mm
Overall Height 1670 mm
Wheelbase 2750 mm
Seating Capacity 5 Seats

Powertrain

0-100 km/h 6.9 sec
Top Speed 175 km/h
Max. Power 160 kW
Max. Torque 320 N·m
Battery Capacity 60.22 kWh
Driving Range Up to 430 km (WLTP)

Safety Data

Euro NCAP 5 Stars
Adult Protection 92%
Child Protection 88%
Main ADAS
  • Adaptive Cruise (ACC)
  • Lane Keep Assist (LKA)
  • Auto Braking (AEB)
  • Blind Spot (BSD)
Core Technology

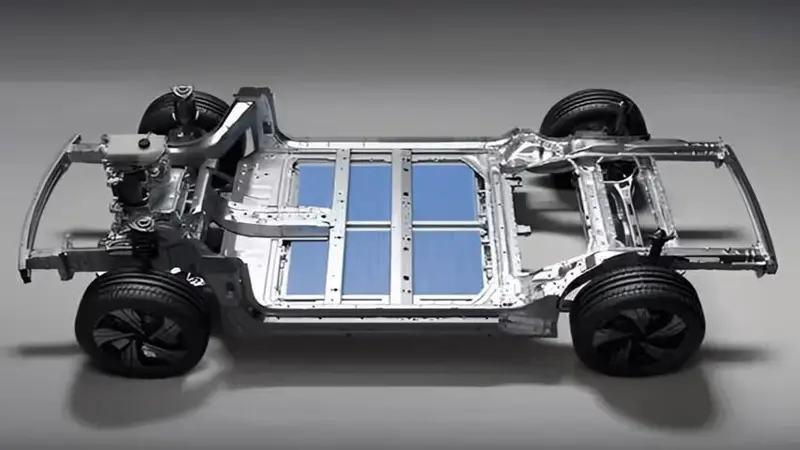

Global Intelligent New Energy Architecture (GEA)

Arsitektur cerdas 4-in-1 yang menggabungkan kemajuan signifikan dalam desain, efisiensi energi, keselamatan, kecerdasan AI, dan kinerja berkendara.

Global Intelligent New Energy Architecture
Battery Integration

Cell-to-Body (CTB)

Integrated Body & Battery Structure

Stronger

Stronger

Battery Protection

Side Collision Cell 0 Compression

Bigger

Bigger

Cabin Space

Lower the floor height

Better

Better

Torsional Stiffness

31000N·m/deg

More Stable

More Stable

Control Experience

Lower center of gravity

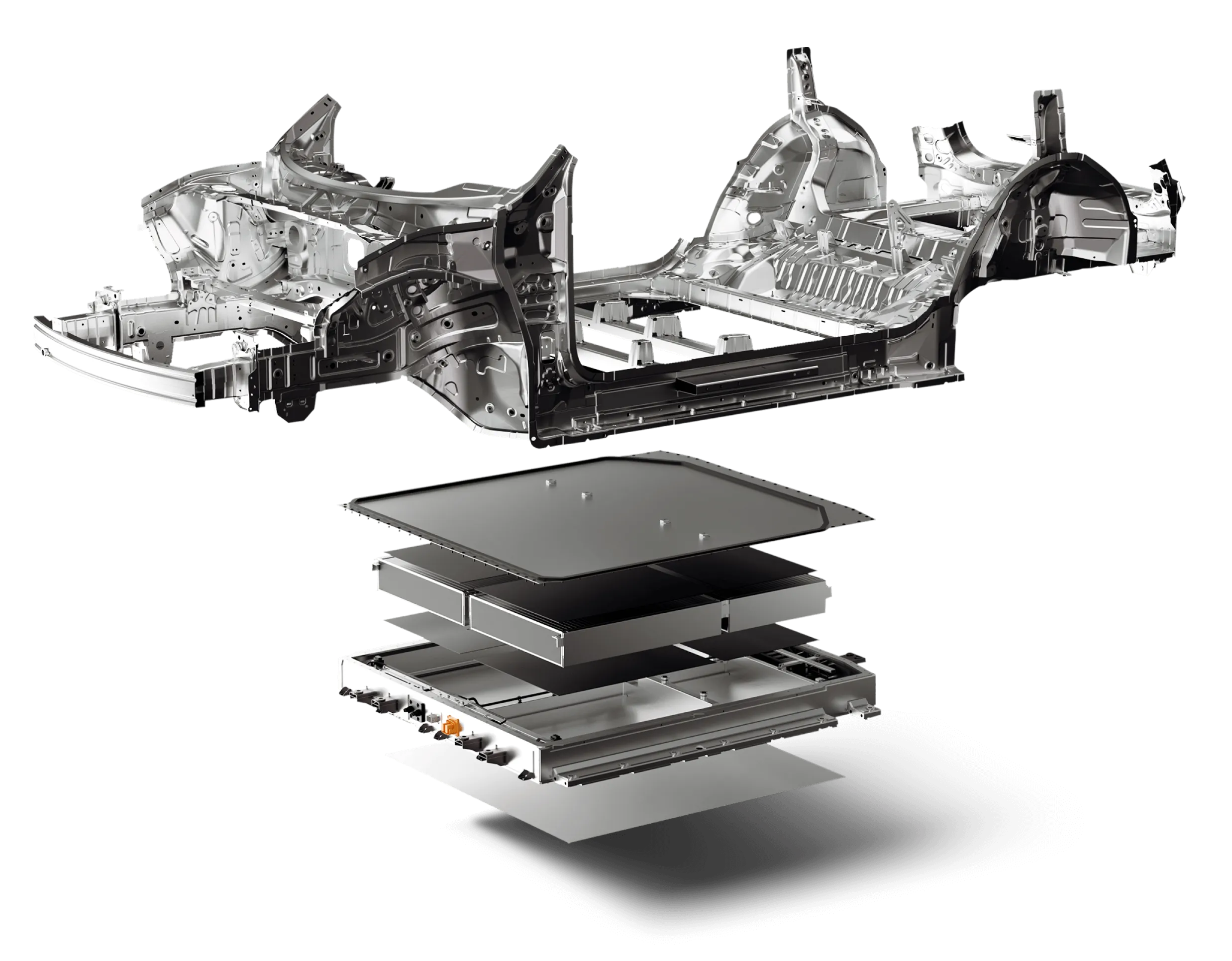

CTB Architecture
11-in-1 Tech

High Performance
Intelligent Electric Drive

160 kW

Power

780 KG

Weight

0.079M³

Volume

  • Best-in-Class Power
  • Lightest-in-Class Weight
  • Smallest-in-Class Volume

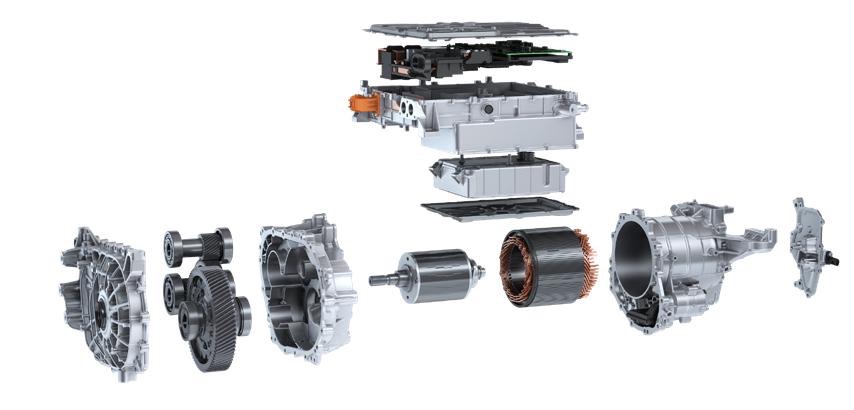

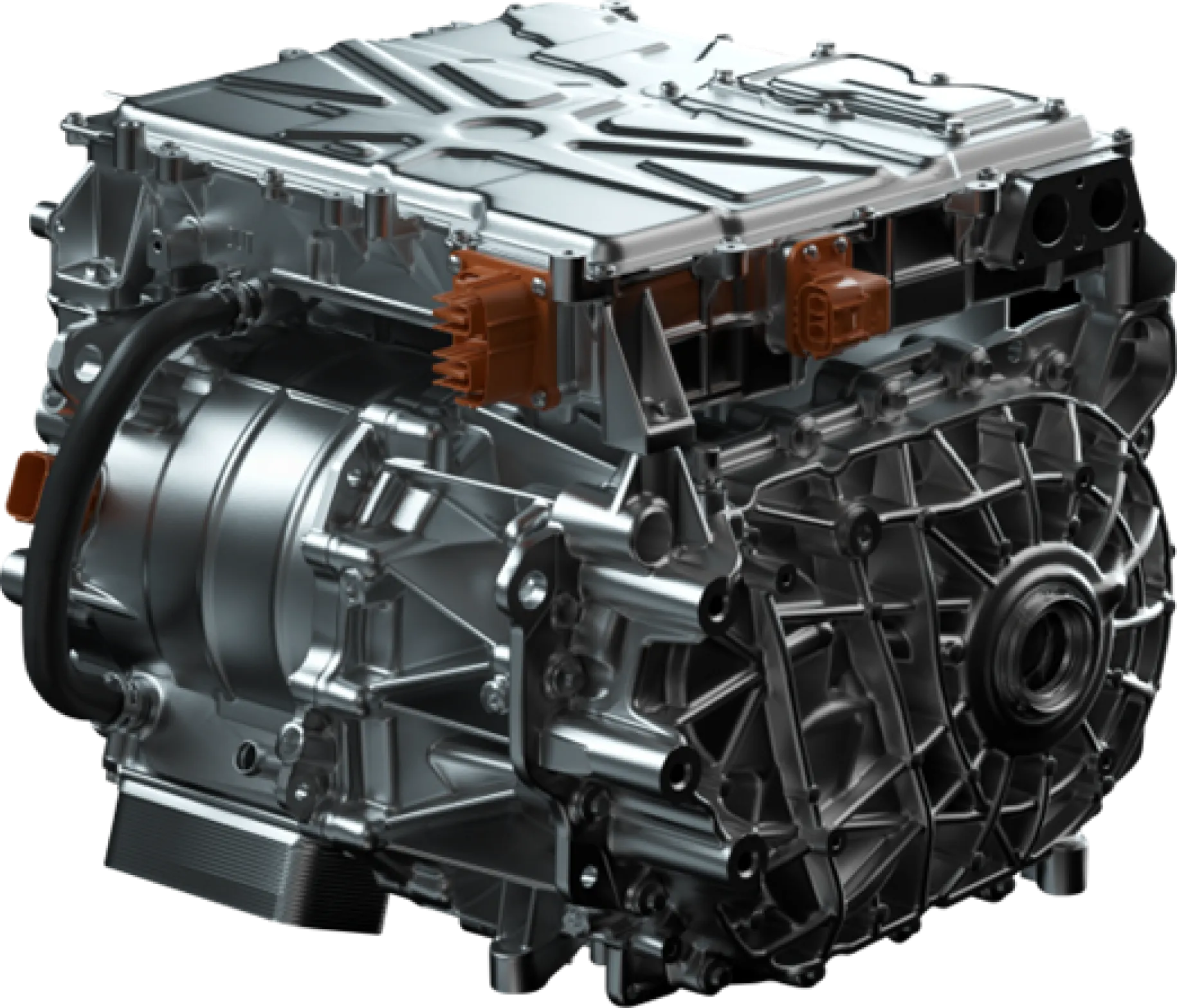

11-in-1 Drive Unit

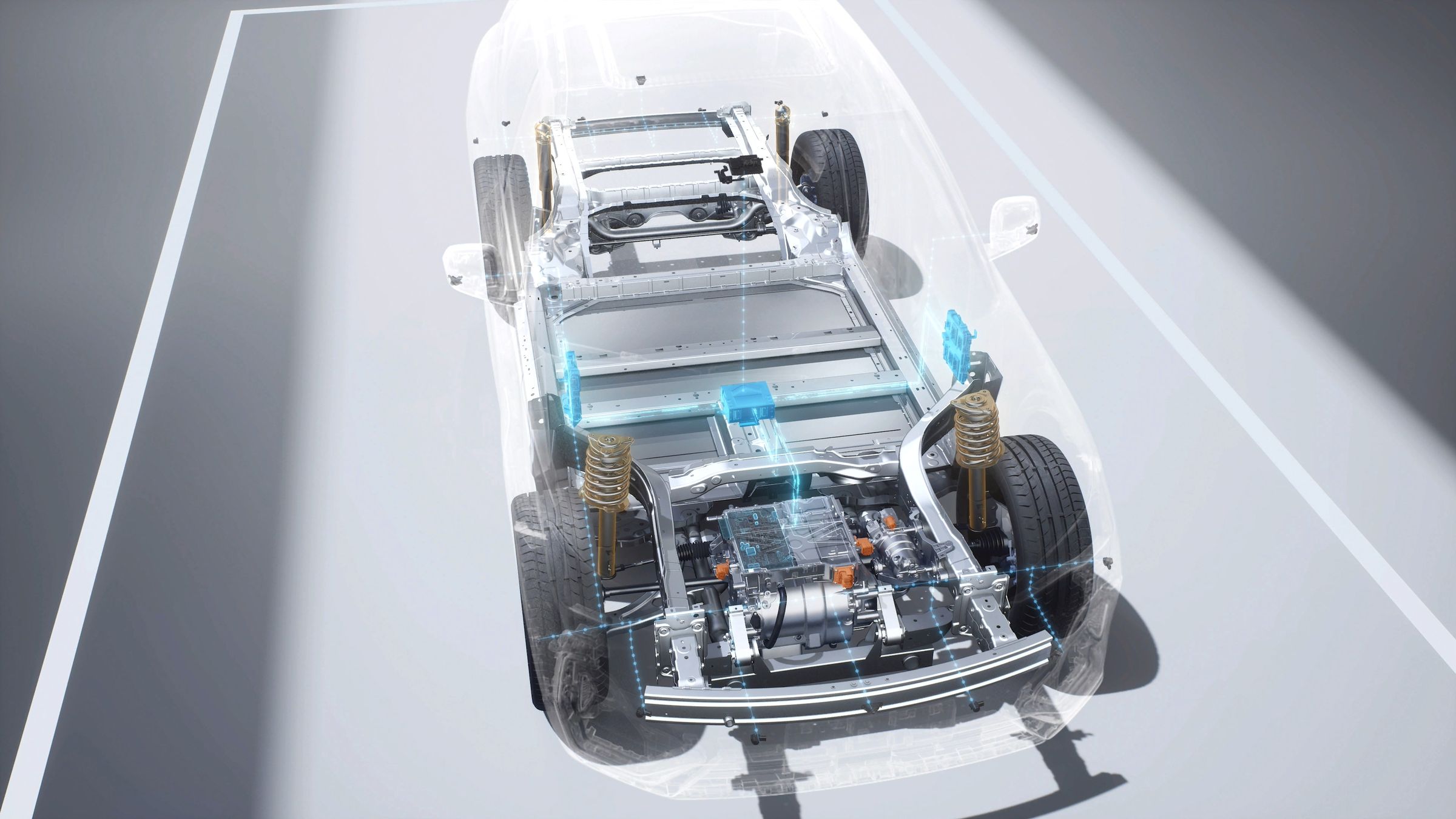

Electric Drive Efficiency
Efficiency Leader

Maksimum Efisiensi

Penggerak listrik cerdas 11in1 merupakan yang terdepan di kelasnya, paling ringan, terkecil, dan paling efisien dalam kategorinya.

Battery Technology

Aegis Short Blade Battery

Revolutionary Battery Technology

Generasi terbaru baterai LFP dengan kepadatan energi tinggi dan tingkat keamanan ekstrem, dirancang untuk siklus hidup yang lebih lama dan pengisian daya yang lebih cepat.

Energy Replenishment

Faster Charging

DC Fast Charging

20min

30% to 80% State of Charge

Charging Ratio

1.8C

33% Faster than Average

Max DC Input Up to 100 kW (CCS Standard)
AC Slow Charge 6.1 Hours (10% - 100%)
Additional Tech
V2L V2V
Euro NCAP

Crash Safety Test

Maximum Protection Guaranteed
